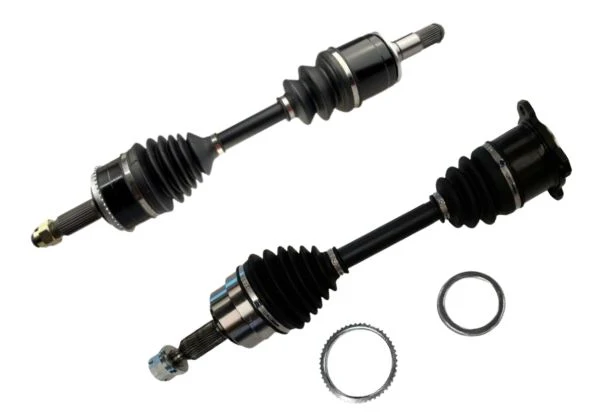

2X Front CV Shaft For Mitsubishi Pajero NM NP NS NT NW NX 2.8L 3.2L 3.5L 3.8L

CV Axle Drive Shaft - Left & Right-Hand Side Automatic/Manual 4WD



Built tough to OEM specifications using heat-treated chrome steel, maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

• Mitsubishi Pajero GLX, GLS, EXCEED, VRS NP V78W (10/2002~09/2006) 4 Door SUV Full-Size 3.2 litre 4M41T I4 16v DOHC I/C Turbo EFI 121kW
• Mitsubishi Pajero GLX, GLS, EXCEED, VRX NP V78W (10/2002~08/2006) 4 Door SUV Full-Size 3.2 litre 4M41T I4 16v DOHC I/C Turbo EFI 121kW
• Mitsubishi Pajero GLX, VRX NS V98W (10/2006~12/2008) 4 Door SUV Full-Size 3.2 litre 4M41T I4 16v DOHC I/C Turbo CRD 118kW
• Mitsubishi Pajero GLX, VRX, EXCEED NS V98W (10/2006~12/2008) 4 Door SUV Full-Size 3.2 litre 4M41T I4 16v DOHC I/C Turbo CRD 118kW
• Mitsubishi Pajero GLX, VRX, EXCEED NS V98W (10/2006~12/2008) 4 Door SUV Full-Size 3.2 litre 4M41T I4 16v DOHC I/C Turbo CRD 118kW
• Mitsubishi Pajero R, X NS V88W (01/2007~01/2009) 2 Door SUV Full-Size 3.2 litre 4M41T I4 16v DOHC I/C Turbo CRD 125kW
• Mitsubishi Pajero R, X NS, NT V87W (10/2006~01/2010) 2 Door SUV Full-Size 3.8 litre 6G75 V6 24v SOHC MPFI 182kW
• Mitsubishi Pajero NS, NT, NW V97W (10/2006~05/2013) 4 Door SUV Full-Size 3.8 litre 6G75 V6 24v SOHC MPFI 184kW
• Mitsubishi Pajero NT V97W (01/2009~06/2010) 4 Door SUV Full-Size 3.8 litre 6G75 V6 24v SOHC MPFI 175kW
• Mitsubishi Pajero NT, NW, NX V98W (01/2009~07/2016) 4 Door SUV Full-Size 3.2 litre 4M41T I4 16v DOHC I/C Turbo CRD 147kW
• Mitsubishi Pajero NT, NW, NX V98W (01/2009~08/2015) 4 Door SUV Full-Size 3.2 litre 4M41T I4 16v DOHC I/C Turbo CRD 147kW
• Mitsubishi Pajero NX V98W (08/2016~03/2021) 4 Door SUV Full-Size 3.2 litre 4M41T I4 16v DOHC I/C Turbo CRD 141kW


Sizing and Specifications

Right Side:

• Length (Compressed): 528mm
• Spline Count - Outer/Wheel Side: 30T
• Nut: M22 x 1.5
• Flange Bolt Hole Diagonal: 115mm
• Flange Bolt Hole Across: 81mm
• ABS Ring Teeth: 50

Left Side:

• Inboard Spline Count: 28
• Inboard Joint Type: Ball
• Outboard Spline Count: 30
• Outboard Joint Type Ball
• Length (Compressed): 603mm
• ABS: 50T



What's Included

• 1 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
