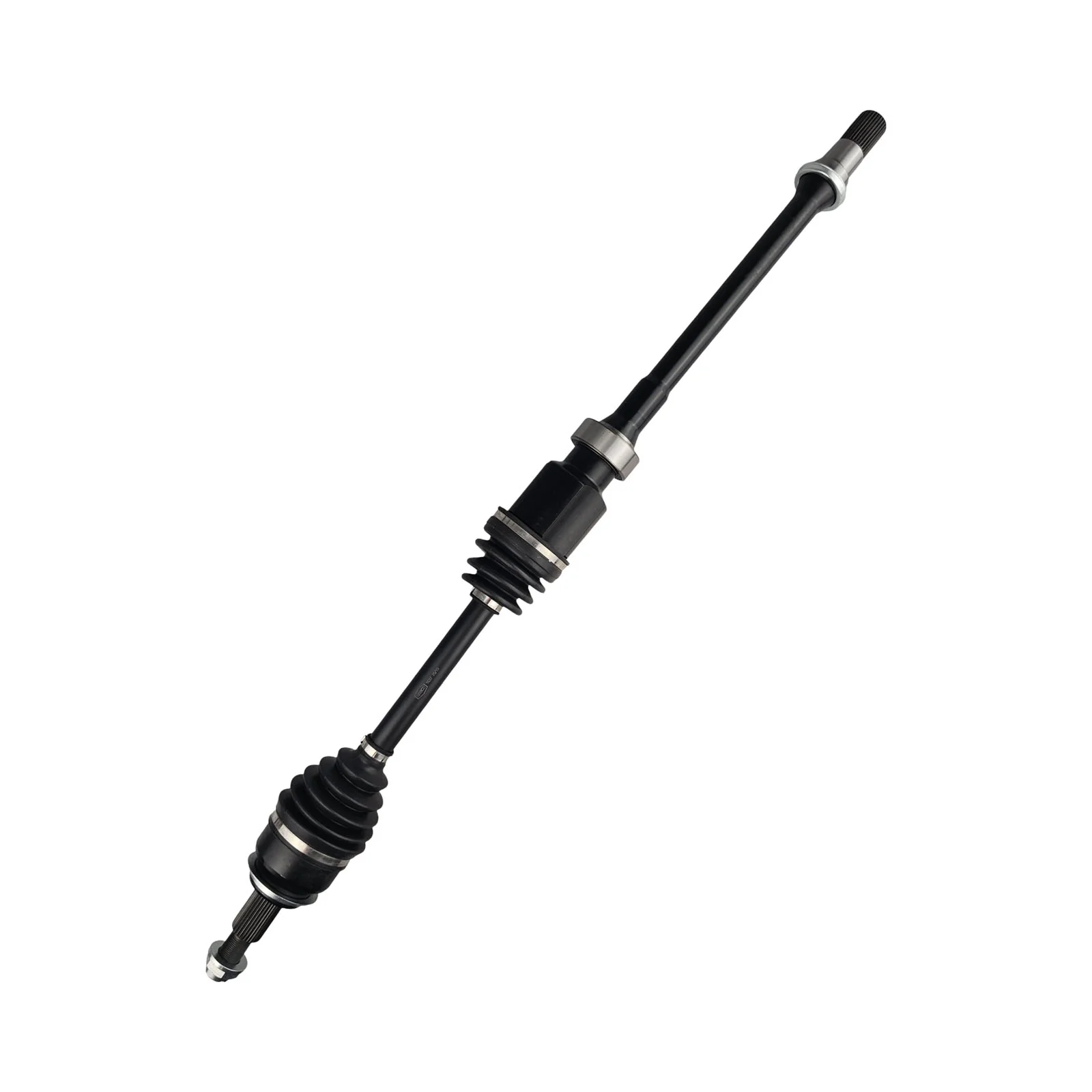

Front Right CV Axle Drive Shaft For Mazda 6 GJ GL 2.5L FWD 2012-2018 Automatic

Brand New Right Front CV Drive Shaft

***Note: Please double check before purchasing. The is for the Right Side.***

Built tough to OEM specifications using heat-treated chrome steel for maximum product life. High-quality Neoprene dust boots and stainless steel clamps help prevent contamination. Packed with moly grease to perform at varying angles and speeds without friction, even at high revolutions.

Vehicle Fitment Information for:

• Mazda 6 Mazda6 GJ GL 2.5L PY-VPS FWD (12/2012 - 05/2018) Automatic Only
• Includes Sub Models ATENZA, GT, GT SAFETY, SPORT, SPORT SAFETY, TOURING, TOURING SAFETY

⚠️ Important Notes for You:
We strongly advise using the Australian Number Plate lookup to confirm fitment.

Sizing and Specifications

• Length (Compressed): 1019 mm
• Spline Count - Outer/Wheel Side: 31
• Spline Count - Inner/Diff Side: 31
• Inboard Joint Type: Tripod
• Outboard Joint Type: Ball
• Hub Nut: M22 x 1.5
• Extension Shaft Length from Bearing: 70 mm
• Extension Shaft Length from Tin Seal: 88 mm
• Extension Shaft Bearing Cradle OD: 25 mm
• Extension Shaft Bearing Cradle Bolt Hole PCD: 430 mm

What's Included

• 1 x CV Shaft

All components include a 12 month/20,000km warranty and support from our specialist team.
