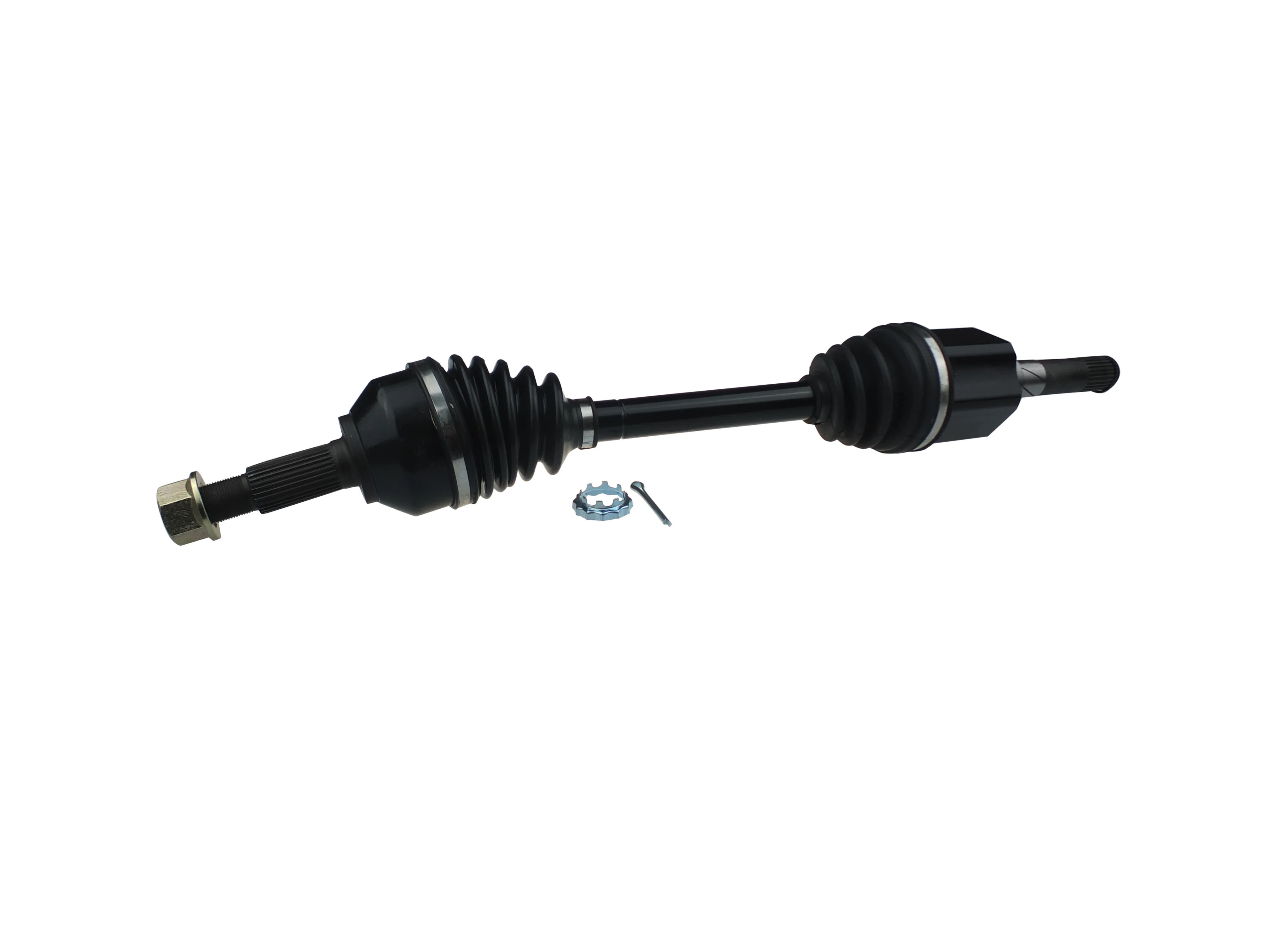

Left Drive Shaft for Nissan X-Trail T31 Renault Koleos H45 2.5L Dualis KNJ10 CVT

CV Axle Drive Shaft - Front Left Hand Side CVT 4WD/AWD FWD

***Front left, CVT only, IMPORTANT please see fitment notes - Check Inner Joint Spline Length, if not Correct Check part no: CVA1593 or CVA1544 for Renault Koleos***

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

• Nissan X-Trail T31 TAN31 TNT31 2.5L QR25DE I4 16V DOHC VVT CVT 4WD (08/2007 - 03/2015) For CVT Only
  Includes Sub-models Adventure Edition, ST, ST Limited Edition, ST-L, TI, 25S, 25ST, 25X, 25XT, 25XTT, Axis
• Nissan Dualis J10 KNJ10 2.0L MR20DE I4 16V DOHC VVT Manual CVT FWD 4WD AWD (05/2007 - 07/2013) For CVT Only, Check Length NZ Models
  Includes Sub-models 20G, 20S, Cross Rider, Four 4WD
• Renault Koleos H45 2.5L 2TR.700/2/3 I4 16V DOHC VVT CVT AWD (09/2008 - 08/2016) For AWD CVT Only - Check Inner Joint Spline Length, if not Correct Check part no: CVA1544
  Includes Sub-models BOSE SE, BOSE SE PREMIUM, DYNAMIQUE, PRIVILEGE


Sizing and Specifications

• Length (Compressed): 667mm
• Spline Count Outer/Wheel Side: 29
• Spline Count Inner/Diff Side: 27

• Inner Joint Spline Length from Dust Shield: 75mm



What's Included

• 1 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
