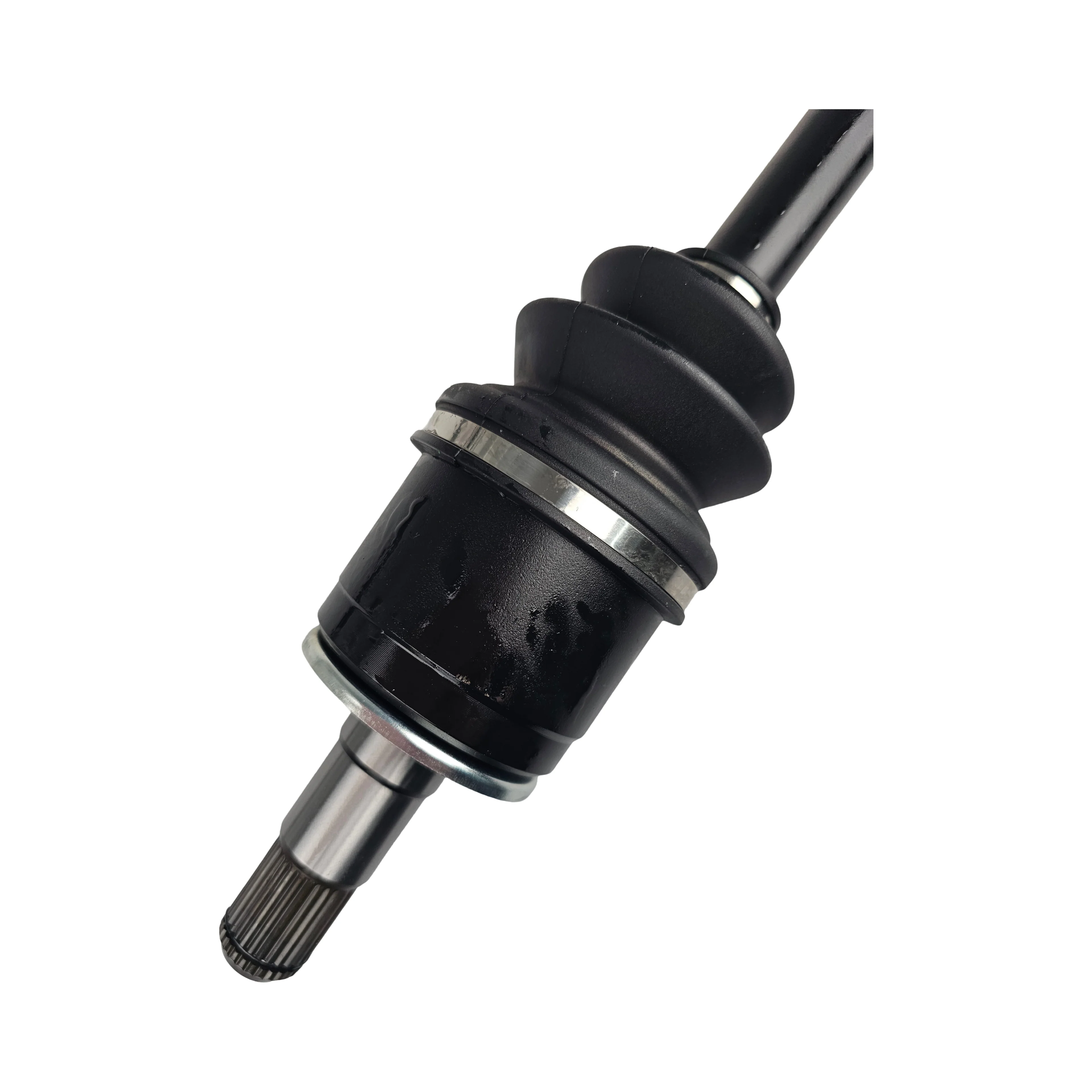

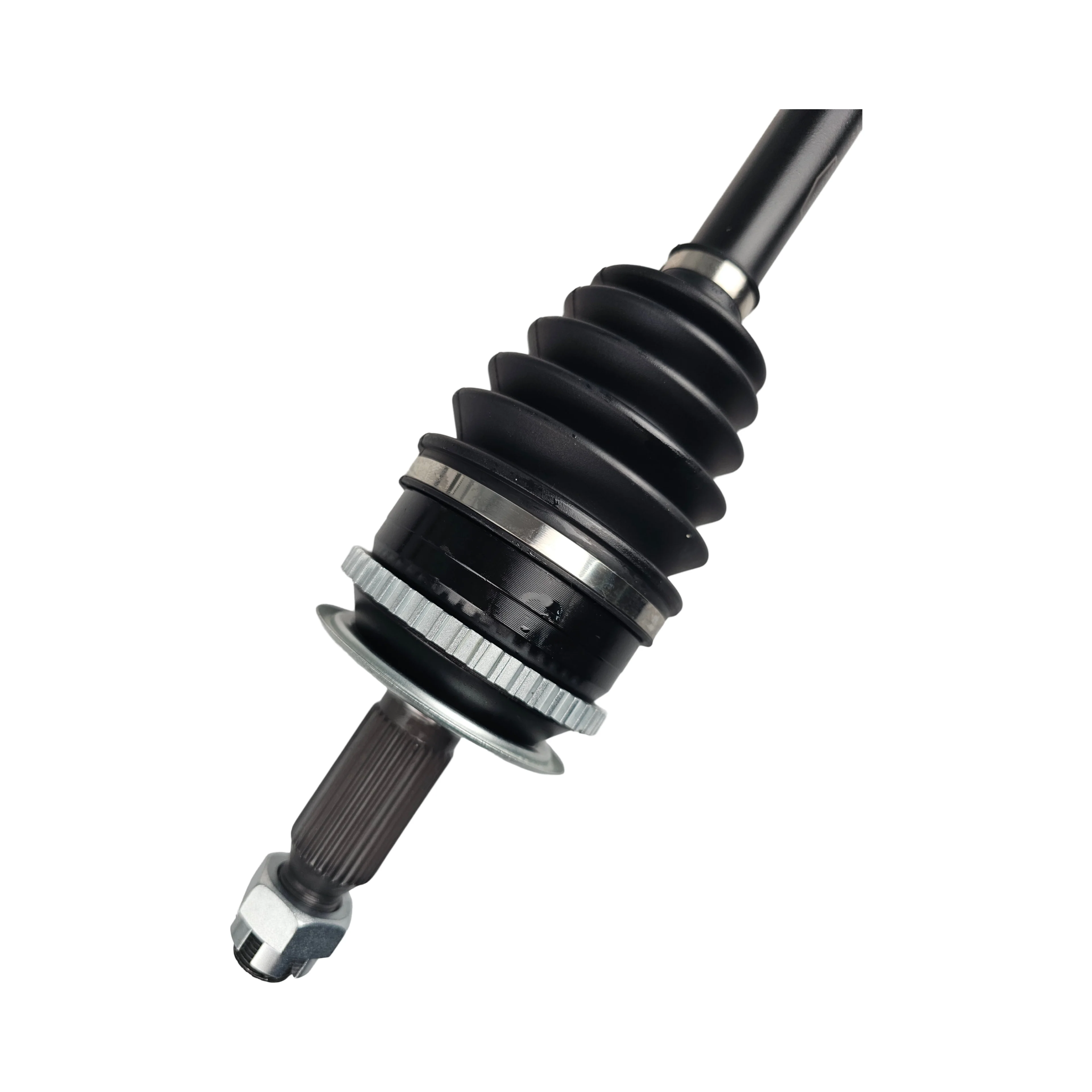

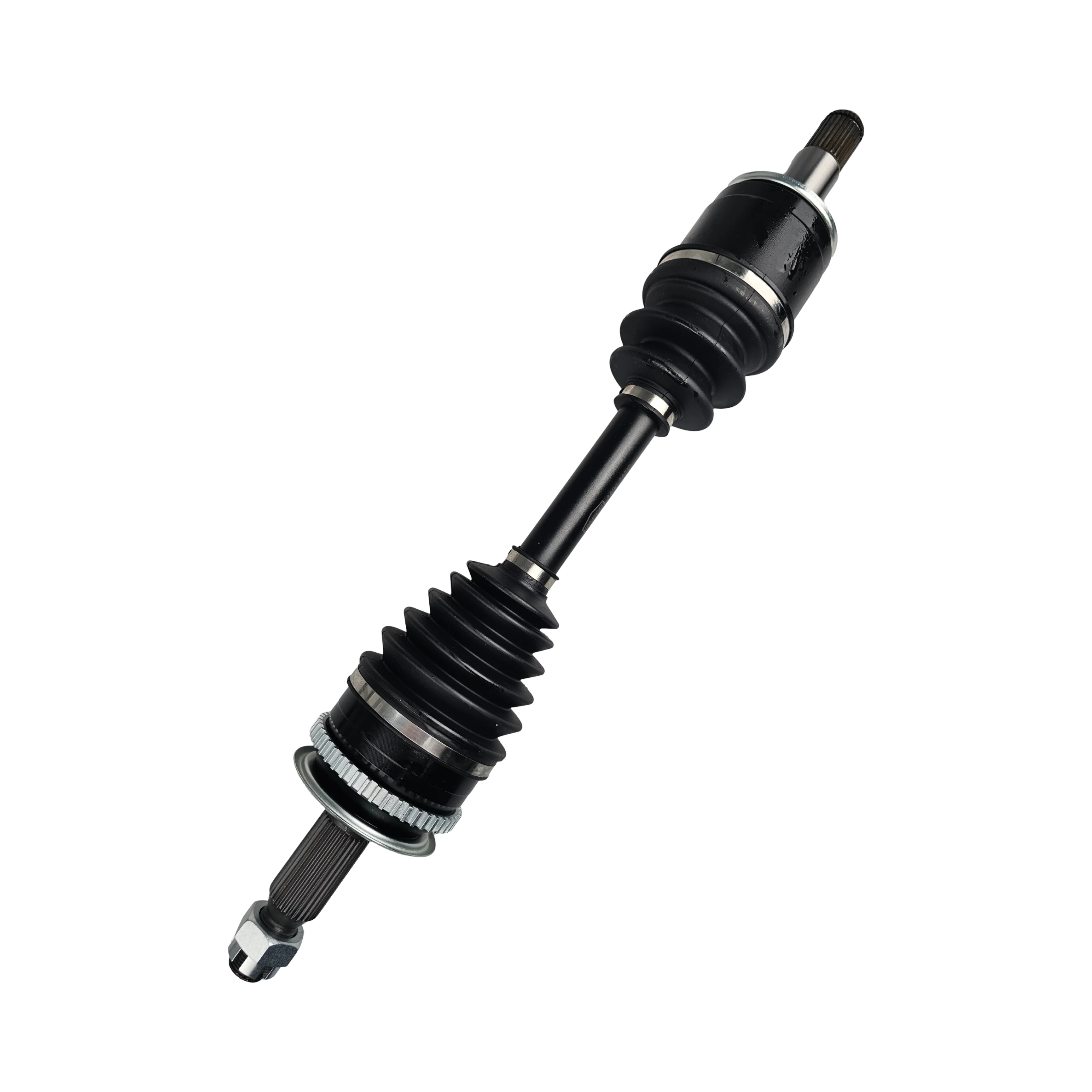

CV Axle Drive Shaft - Left Hand Side Front, Automatic/Manual

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

Models Including Sub Models:

• Pajero Sport, Series: QE & QF, Chassis: KS1W, Engine: 2.4L 4N15 Diesel CRD I/C Turbo 01/2015-> ON (TBA End Date) 4D SUV
  Sub Models: Black Edition, Exceed, GLS, GLX & GSR
• Triton, Series: MQ & MR, Chassis: KL11, Engine: 2.4L 4N15 Diesel CRD I/C Turbo 05/2015-> ON (TBA End Date) 4D Wellside, 2D & 4D Cab Chassis
  Sub Models: Exceed, GLS, Blackline, Premium, Sports Edition, Tobi Price Edition, GSR, GLX, GLX+, GLX Club, Adas & Plus
• Triton, Series: MN, Chassis: KB4, Engine: 2.5L 4D56T Diesel CRD I/C Turbo 09/2009-04/2015 4D Wellside, 2D & 4D Cab Chassis Check Compressed Length 593mm
  Sub Models: Activ, GL-R, GLX-R, 30th Anniversary, Luxury & Warrior
• Mitsubishi Challenger PB, PC 2.5L 4D56T Diesel CRD I/C (12/2009-12/2015)
  Sub Models: 30TH ANNIVERSARY, LS, XLS

Sizing and Specifications

•  Length (Compressed)  593mm
• Spline Count - Outer/Wheel Side  30T
• Spline Count - Inner/Diff Side  28T
• Inboard Joint Type Tripod
• Outboard Joint Type Ball
• ABS Ring Teeth  47

What's Included

• 1 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
