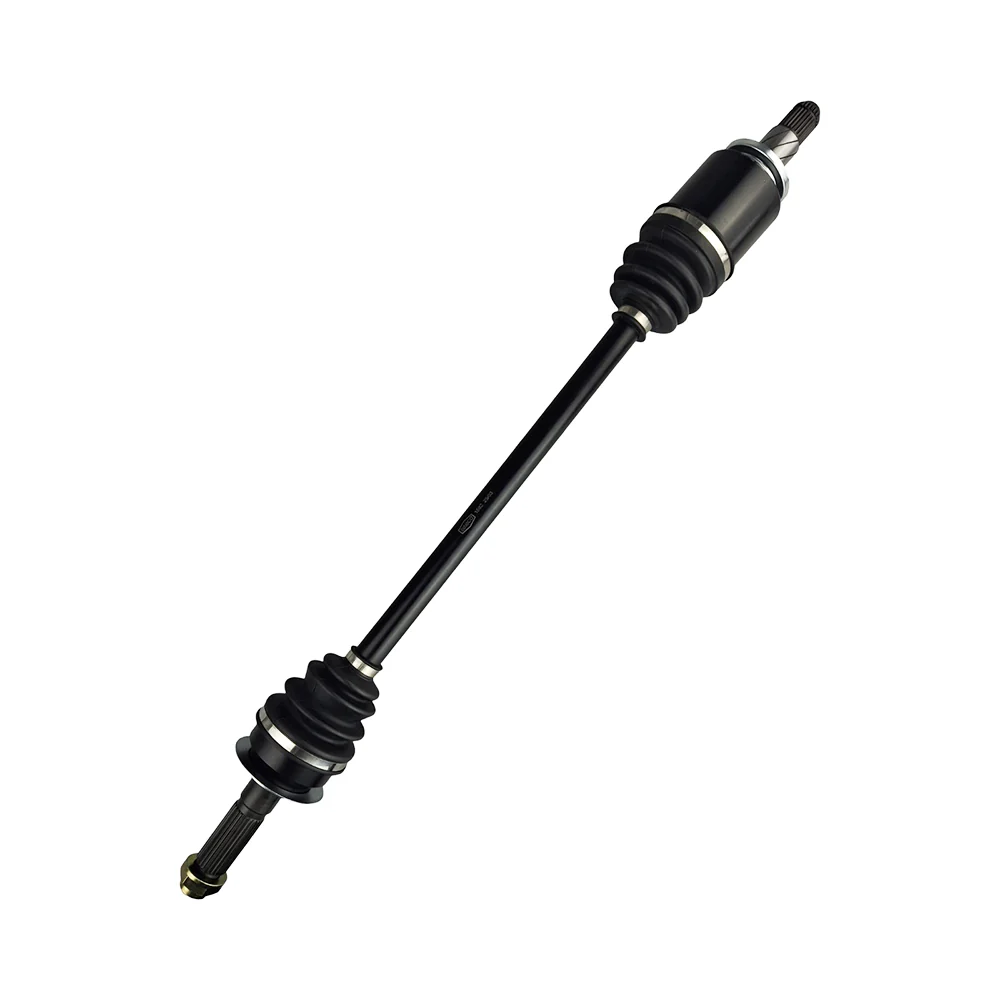

Rear LH CV Axle Drive Shaft for Subaru Forester SH SK, XV GP, Impreza GT

CV Axle Drive Shaft - Rear Left Hand Side  CVT/Automatic/Manual AWD

CHECK SPECIFICATIONS AND OE PART NUMBER

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment For:

• Subaru Forester XT SH, S12 SH9 12/2007~10/2012 4 Door Wagon 2.5L EJ255 F4 16v DOHC VVT I/C Turbo MPFI
• Subaru Forester X, XS SH, S12 SH9 12/2007~11/2010 4 Door Wagon 2.5L EJ253 F4 16v SOHC VVT MPFI
• Subaru Forester 2.0D SH, S12 SHH 01/2003~03/2011 4 Door Wagon 2.0L EE20 F4 16v DOHC I/C Turbo CRD
• Subaru Forester 2.0D SH, S12 SHN 08/2010~10/2012 4 Door Wagon 2.0L EE20 F4 16v DOHC I/C Turbo CRD
• Subaru Forester S-EDITION SH, S12 SH9 08/2010~10/2012 4 Door Wagon 2.5L EJ255 F4 16v DOHC VVT I/C Turbo MPFI
• Subaru Forester X, XS SH, S12 SHM 08/2010~10/2012 4 Door Wagon 2.5L FB25A F4 16v DOHC VVT MPFI
• Subaru Forester 2.0D SJ, S13 SJD 08/2012~07/2018 4 Door Wagon 2.0L EE20 F4 16v DOHC I/C Turbo CRD
• Subaru Forester HYBRID SK, S14 SKE 05/2019~2025 4 Door Wagon 2.0L FB20W F4 16v DOHC VVT MPFI
• Subaru Impreza GT, G14 GT7 2.0i, 2.0-L, 2.0-S 09/2016~10/2023 4 Door Hatchback 2.0 litre, FB20C F4 16v DOHC VVT MPFI (115kW)
• Subaru XV HYBRID GP, G23 GPE 03/2013~04/2017 4 Door Hatchback 2.0L FB20W F4 16v DOHC VVT MPFI
• Subaru XV GP, G33 GP7 08/2011~08/2017 4 Door Wagon 2.0L FB20A F4 16v DOHC VVT MPFI


Sizing and Specifications

• Length (Compressed): 794mm
• Spline Count - Outer/Wheel Side: 27T
• Spline Count - Inner/Diff Side: 25T
• Inboard Joint Type: Tripod
• Outboard Joint Type: Ball
• Inner/Diff Side Shaft Length from dust shield: 72mm
• Inner/Diff Side Shaft - Dust Shield to Circlip: 62mm
• Spline / Shaft Length - Outer/Wheel side: 120.5mm from Dust Shield Lip to End
• Spline / Shaft Length - Outer/Wheel side: 94.5mm from Dust Shield Lip to end of Splines
• Hub Nut Style: M22 x 1.5



What's Included

• 1 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
