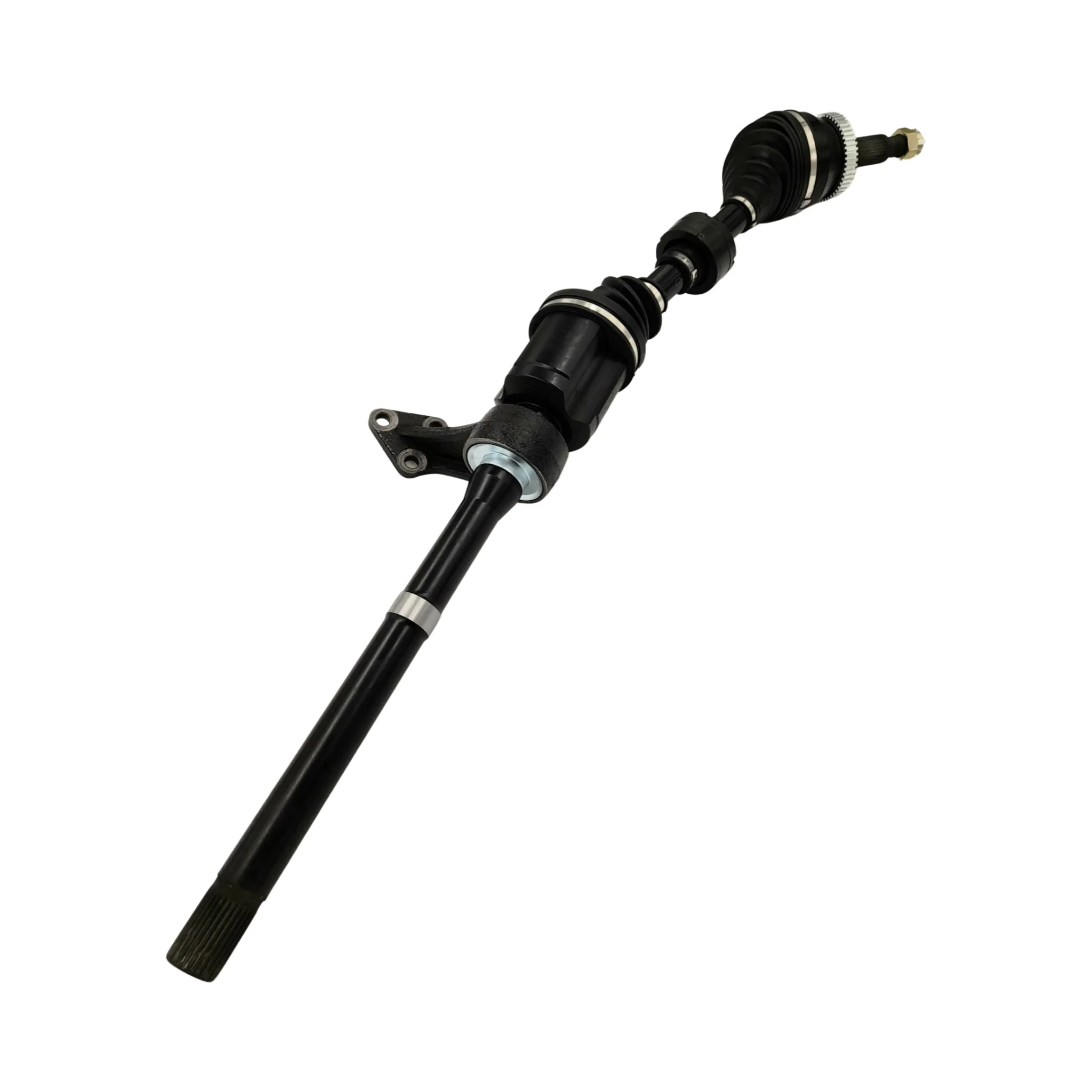

RH CV Joint Axle Drive Shaft for 2.2L Diesel Hyundai Santa FE Kia Sorento Auto

CV Axle Shaft - Right Hand Side Front for Automatic Transmission -Purchaser will need to check extension shaft mount or order a CVA1590

Fits

• Hyundai Santa Fe CM 2.2L D4HB (2009–2012)
  Sub Models Include Elite, Highlander CRDI, SLX CRDI, Trail CRDI.

• Hyundai Santa Fe TM 2.2L D4HB (2018–2020)
  Sub Models Include Elite, Highlander

• Kia Sorento XM 2.2L D4HB (2009–2015)
  Sub Models Include Platinum, Platinum Global Circuit,SI, SLI, SLI Global Circuit

• Kia Sorento UM 2.2L D4HB (2015–2020)
  Sub Models Include AO, Black Edition, GT-Line  Platinum SI SI Fleet SI Sport

Specifications

• Length (Compressed): 987.5mm
• Spline Count - Outer/Wheel Side: 30 Teeth
• Spline Count - Inner/Diff Side: 28 Teeth
• ABS Ring Teeth: 52 Teeth
• Hub Nut: M22 x 1.5

 

What You Get

1 x CV Shaft CHECK EXTENSION MOUNT OR PURCHASE A CVA1590

 

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

 

What You Really Get

 

Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
