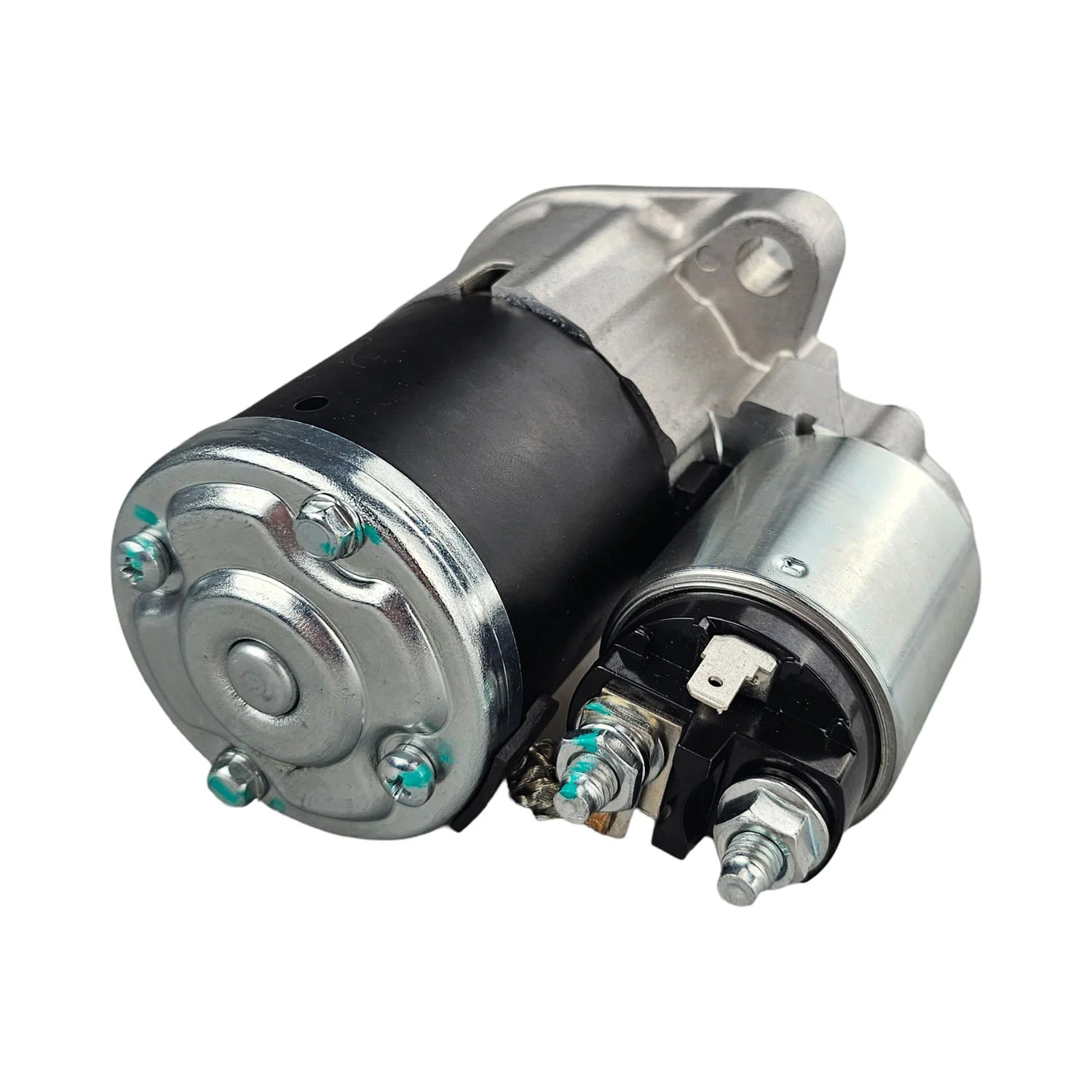

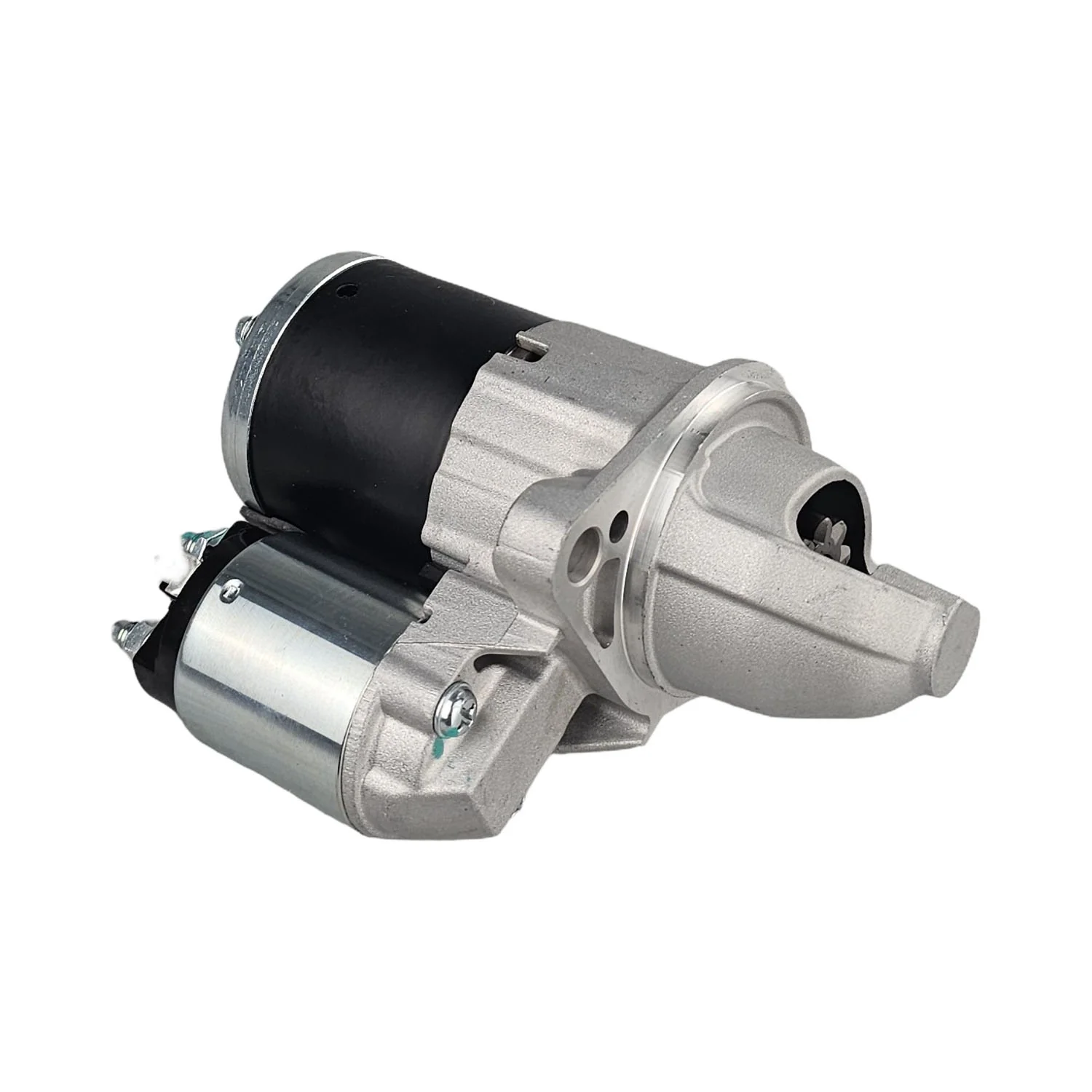

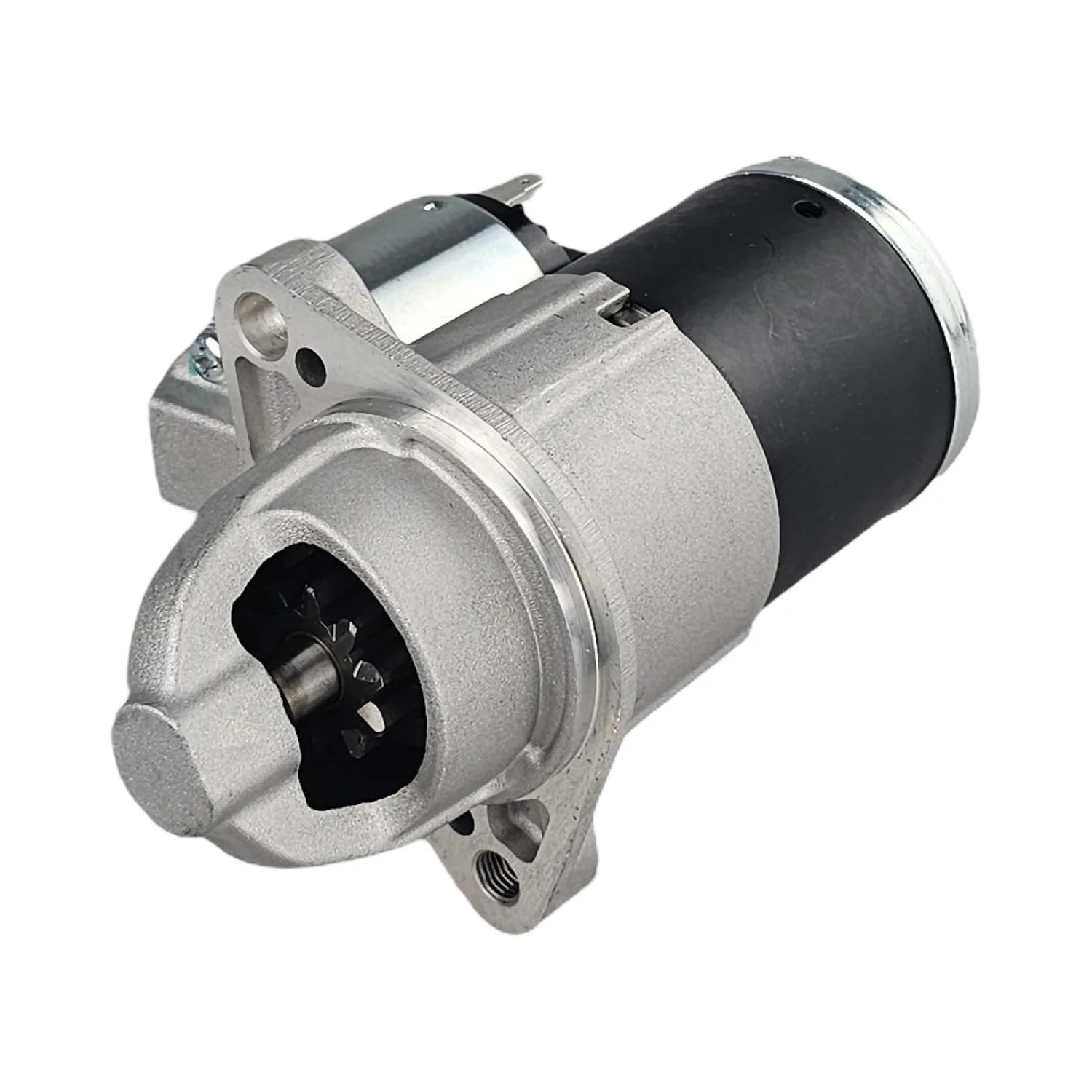

Starter Motor for Suzuki Vitara LY 1.4 K14C, 1.4 K14D/WA06B, 1.6 M16A 10T Pinion

One Brand New Starter Motor

Please double check OE part number

10 Tooth Version - for 8 Tooth Pinion Please See BSM1062

We are proud to offer top-tier starter motors that set the standard in automotive excellence. Our products are crafted in accordance with stringent international quality standards (ISO/TS16949), ensuring reliability and superior performance for a wide range of vehicles.



Vehicle Fitment

• Suzuki Vitara LY EA1S DA1S 1.4L K14C Turbo I/C 4WD FWD (01/2016 - Onwards) 10 Tooth Pinion
  Includes Sub-models Turbo, S Turbo, Turbo Allgrip
• Suzuki Vitara LY DD1S ED1S 1.4L K14D/WA06B Hybrid Turbo I/C 4WD FWD (2023 - Onwards) Please Check OE Part Number, 10 Tooth Pinion
  Includes Sub-models JX Hybrid, JLX Hybrid
• Suzuki Vitara LY YD21S YE21S 1.6L M16A 4WD FWD (09/2015 - Onwards) 10 Tooth Pinion
  Includes Sub-models Beat, GL, GL+, RT-S, Shadow Limited Edition, GLX, RT-X




Specifications and Sizing

• Voltage : 12V

• KW: 1.2
• Rotation Direction: Clockwise
• Pinion Teeth: 10T
• Pinion at Rest: 28mm

• Overall Length: 182mm
• Mounting Bolt Centre-Centre(s): 101mm

• Flange Diameter: 70mm


What's Included

• 1 x Starter Motor

All our parts come with a 12 month/20,000km warranty. They are backed up with a professional customer service team that has been in the industry for over 100 years. We are the wheel end experts. Our customer service team will be there to support you throughout the entire process. From questions you have pre-purchase to follow up support post purchase. Make the right decision and buy with a company that has a proven track record in service and supply.
